Filter Accessories

A filter assembly consists of a filter housing and high-performance filter element. Where specified, it can include bypass valves, differential pressure monitoring devices, and other sampling points. The system fluid enters the assembly through the inlet port. It flows through the inlet and into the filter element. Filter assembly process is divided into three stages: Separation, Coalescing and Filtration.

1. SEPERATION:
As fuel enters the assembly, it moves through the centrifuge and spins off large solids and water droplets, which are heavier than fuel, and fall to the bottom of the collection bowl.

2. COALESCING:
Small water droplets bead-up on the surface of the conical baffle and cartridge filter. When heavy enough, they too fall to the bottom of the collection bowl.

3. FILTRATION:
Last step is the filtration carried out by the filter element inside the assembly. The filter element needs to be replaced at regular intervals.

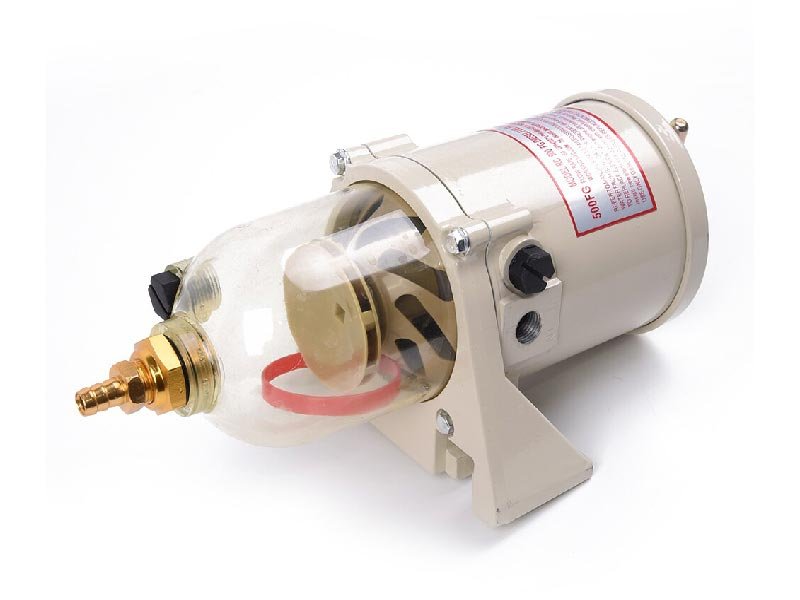

FILTER ASSEMBLY:

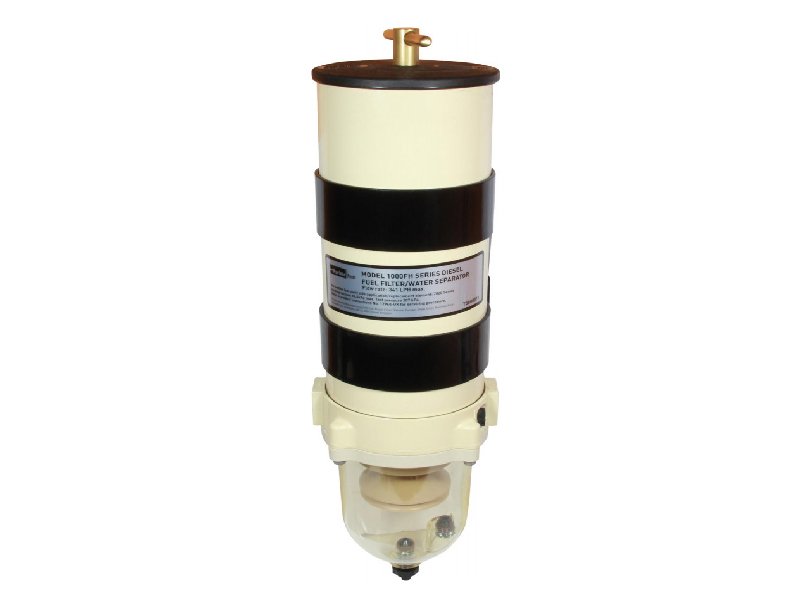

500FH (2010PM Filter Assembly)

900FH (2040PM Filter Assembly)

1000FH (2020PM Filter Assembly)

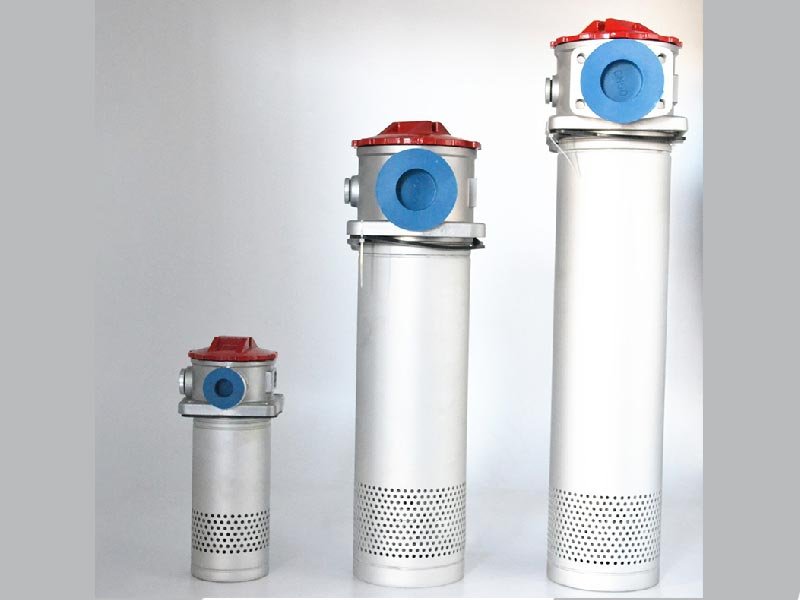

Hydraulic Return Line Filter Assembly

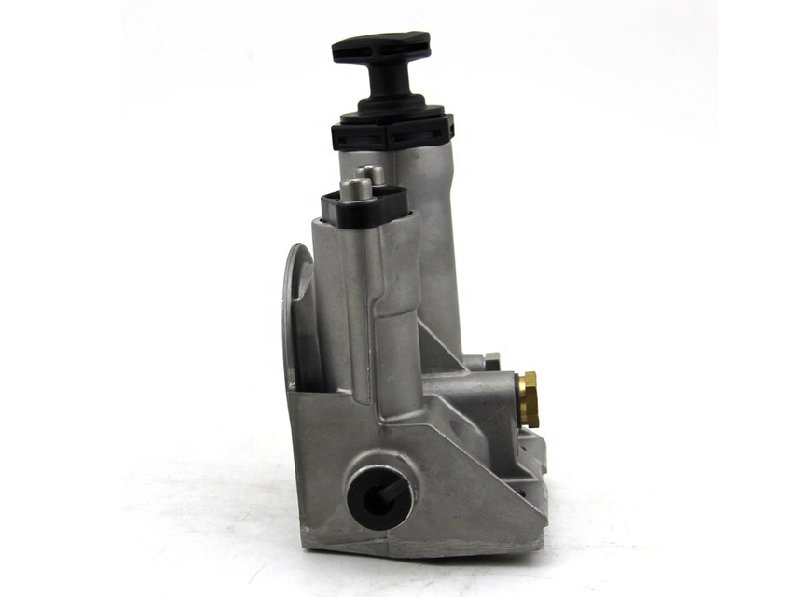

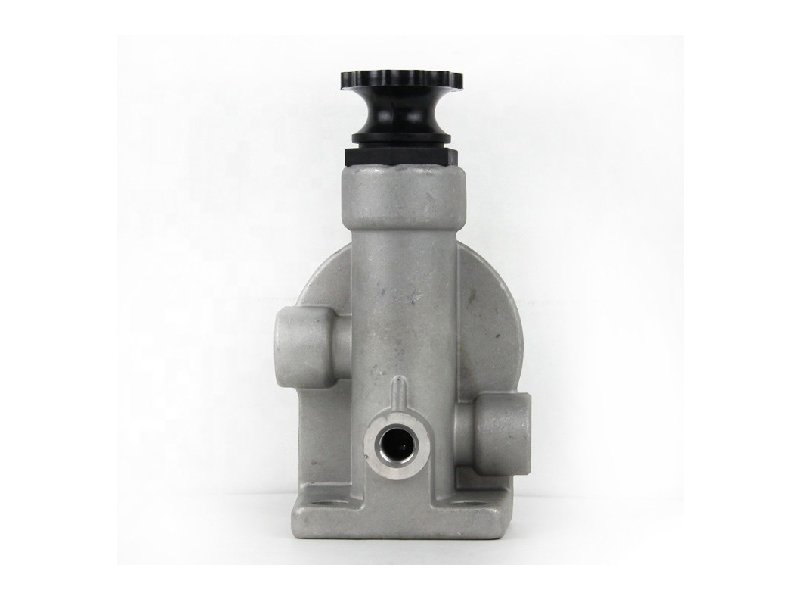

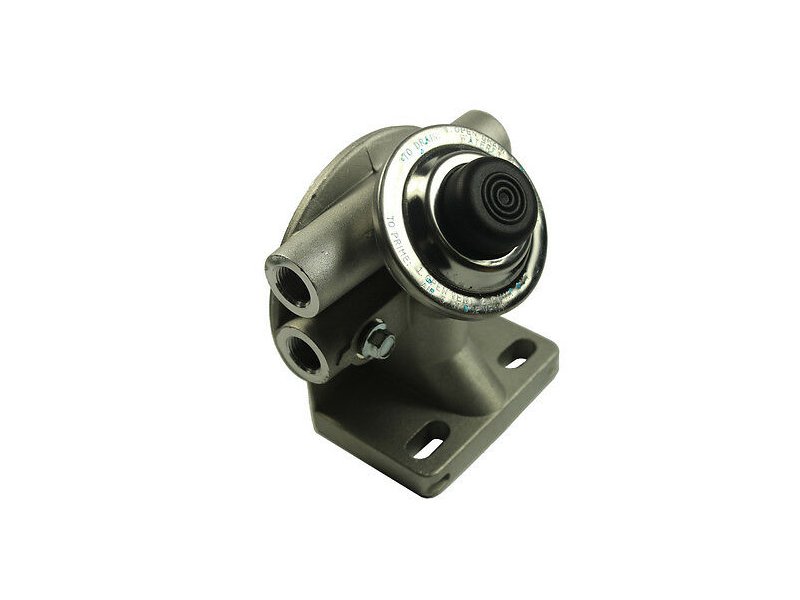

FILTER HEAD:

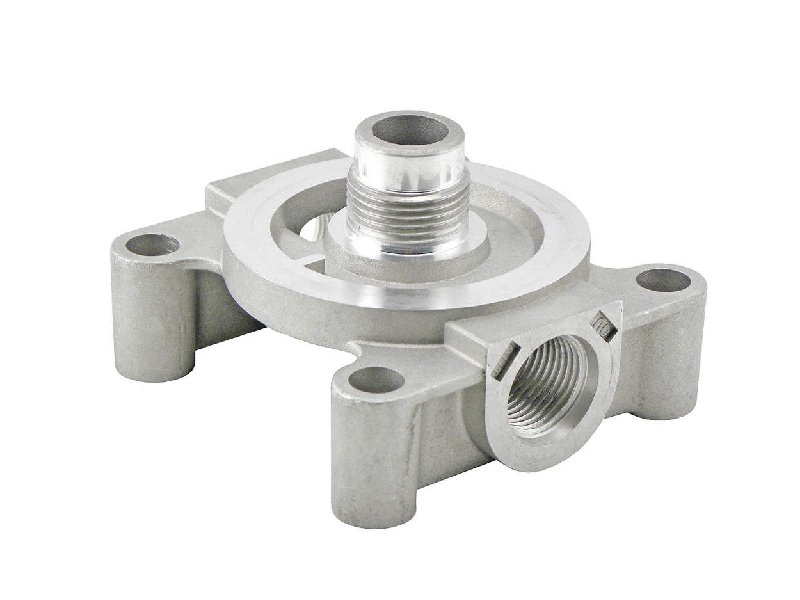

FS1000 Filter Head

FS1242 Filter Head

FS19732 Filter Head

PL270X Filter Head

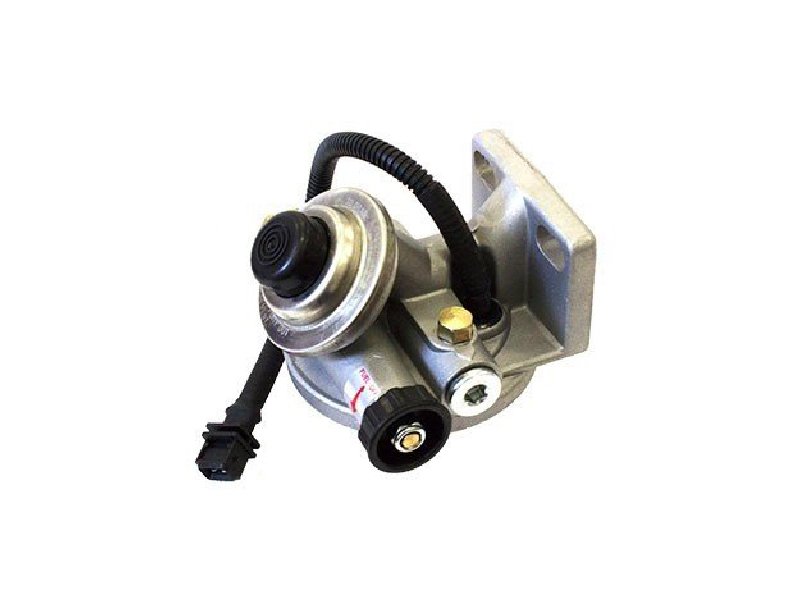

R90P Filter Head (Heating Sensor)

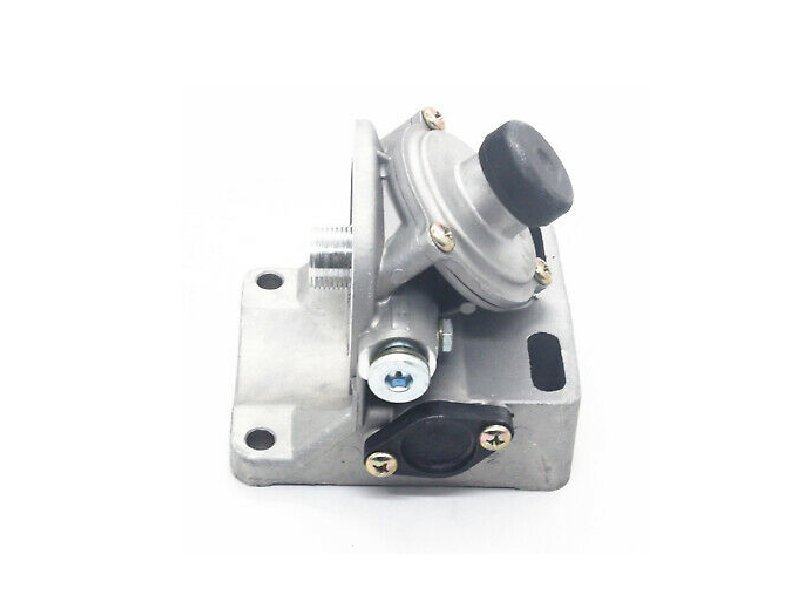

R90P Filter Head

XCMG Filter Head

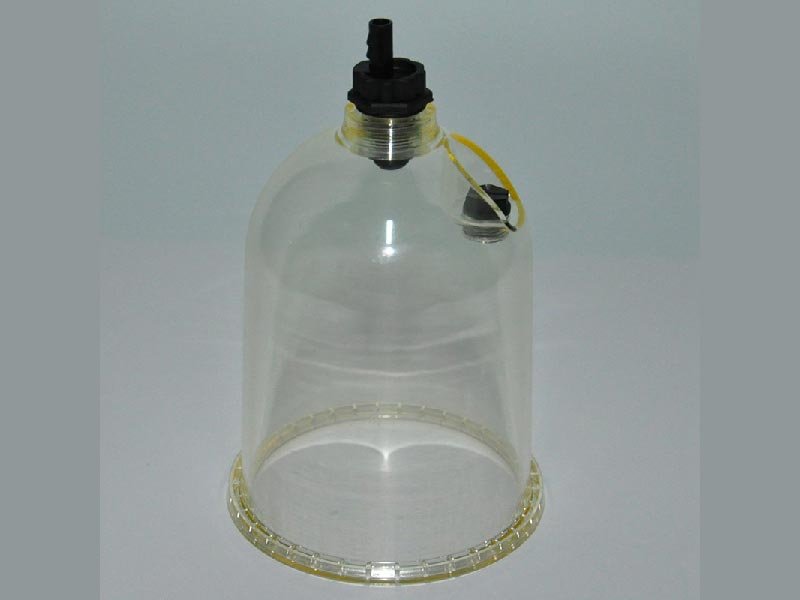

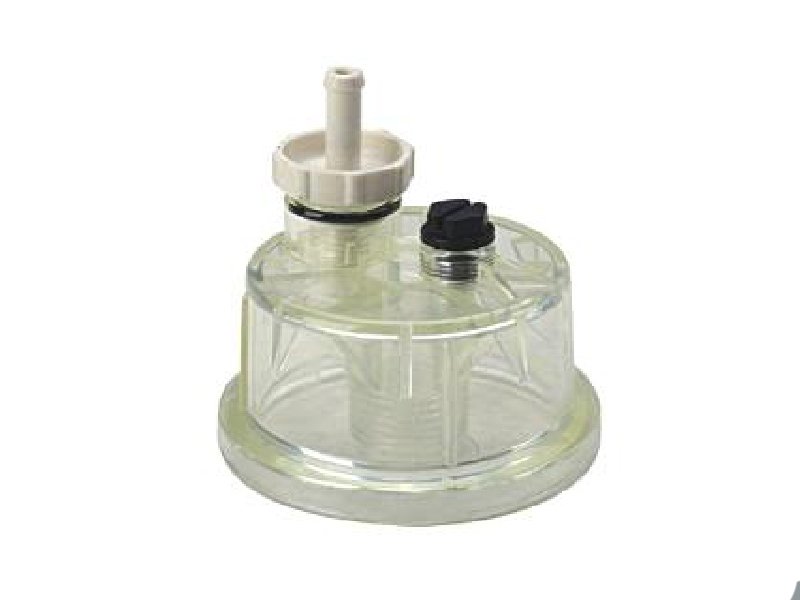

FUEL FILTER BOWL:

1000FG Bowl

FS1242 Bowl

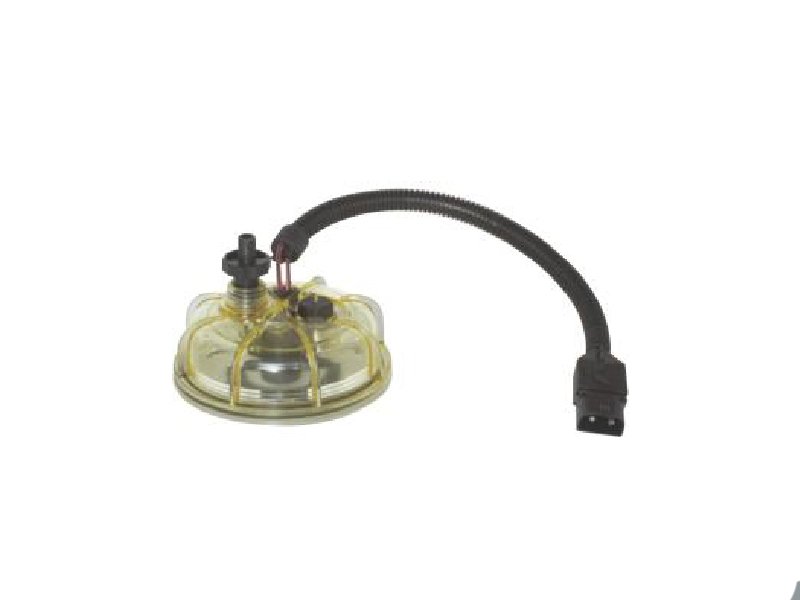

R90P Bowl With Sensor

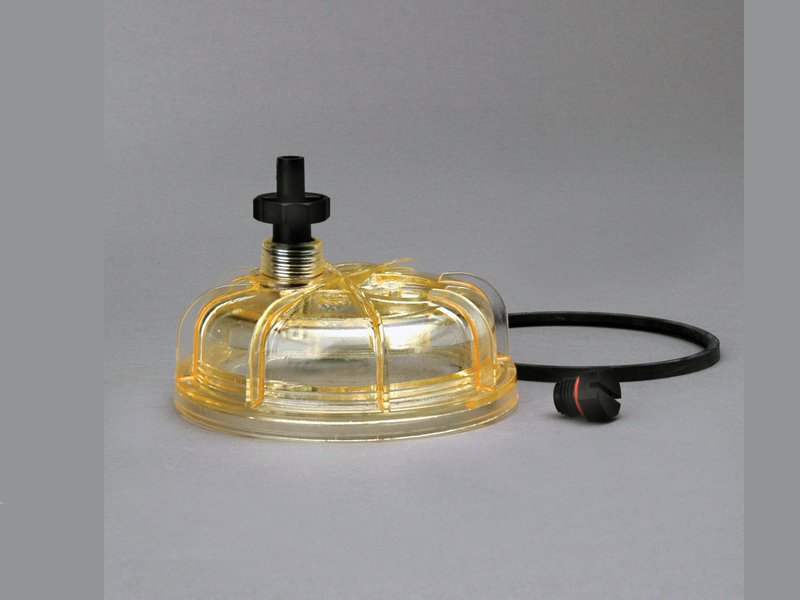

R90P Bowl

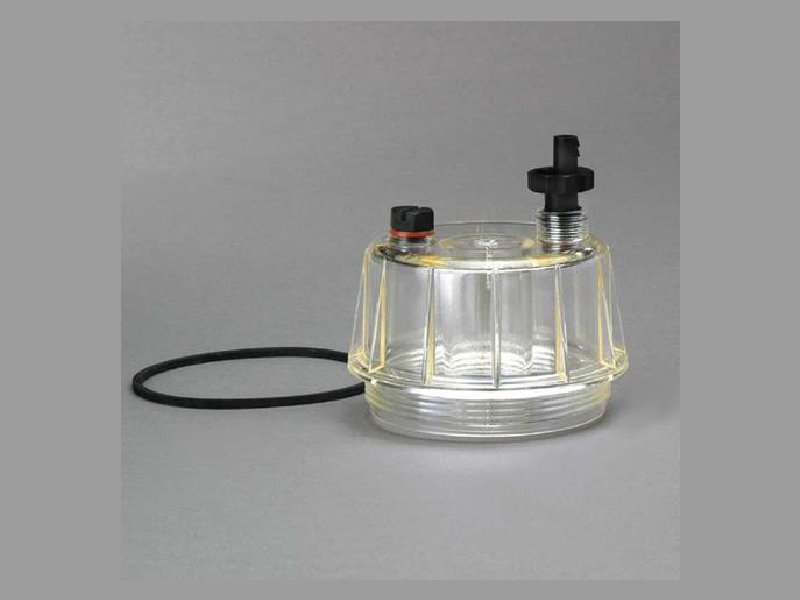

R120T Bowl
