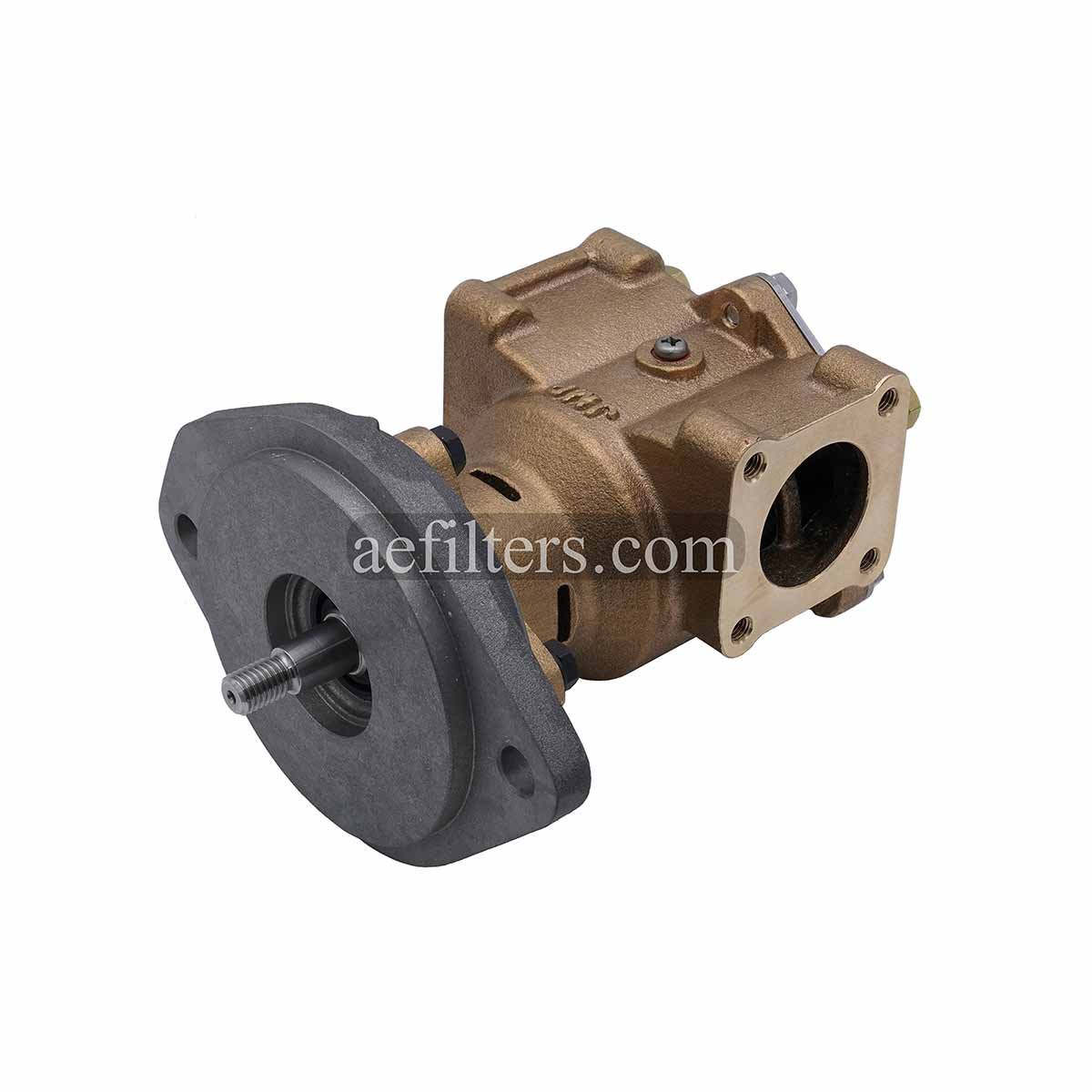

#JPR-S7632 JMP Marine Caterpillar Replacement Engine Cooling Pump (Replaces CAT 4P7168, 113-1109, 152-8392, 167-4252, 170-6116, Sherwood P1710A, P1710C, P1710X, P1726X, P1732C)

63,602.00

SKU: JPR-S7632

Condition: New

Availability: Usually ships within 1-10 business days from Mumbai, MH, India depending on stock availability

Shipping Within India (For all products):
1. Free shipping on order of ₹10,000/- or more
2. ₹499/- flat rate for orders between ₹5,000/- to ₹9,999/-
3. ₹299/- flat rate for orders below ₹5,000/-

GST: As applicable It will be automatically added during checkout

Weight: 16.00 LBS

SKU: JPR-S7632 Category:
Description

Description

#JPR-S7632 JMP Marine Caterpillar Replacement Raw Water Engine Cooling Pump

Includes:

JMP Caterpillar Replacement Engine Cooling Pump #JPR-S7632
QTY: 1

Product Information:

SPECIFICATION JPR-S7632
Uses JMP Impeller p/n


7608-01 (Use on JPR-S7632). Search 7608-01K
Note:
JMP Impeller 7608-01 also used to replace Sherwood 27000
Port Type
1 3/4" Flange
Pump Weight (approx)
14.00 LBS (6.36 KG)

Replaces Genuine Caterpillar Pump p/n(s)



Caterpillar 4P7168, 113-1109, 152-8392, 167-4252, 170-6116
Note:
4P7168 for Engine Model 3116 / Sherwood P1710A/C/X
113-1109 for Engine Model 3126 / Sherwood P1726X (replaced by P1732C)
152-8392 for Engine Model 3126 / Sherwood P1726X (replaced by P1732C)
167-4252 for Engine Model(s) 3126B, C7 / Sherwood P1726X (replaced by P1732C)
170-6116 for Engine Model(s) 3126, 3126B, C7, C9 / Sherwood P1726X (replaced by P1732C)
Genuine Caterpillar Impeller p/n


CAT Impeller 7E0321 (On Engine Models: 3116, 3126, 3126B, 3208, C7, C9)
Please Note:
CAT 7E0321 = JMP 7600-01 (replacement Impeller to use)
JMP 7608-01 (Replacement Impeller to use) = Sherwood 27000
For Engine Model(s):

3116, 3126, 3126B, C7, C9
Replaces Sherwood Pump p/n(s):


P1710, P1710-01, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732A, P1732C, P1732X
Note:
P1726X replaced by P1732C

Sherwood Pump Impeller P/N: 17000K (note: JMP 7600-01K replaces Sherwood 17000K)
Parts Internally Compatible to Genuine
NO
(Changes Made to Impeller, Wear Plate, Cam, Mechanical Seal, and Shaft for Better Quality & Performance)
Major Service Kit (All Internal Parts)
*Sold Separately

You can use the JMP parts Kits listed below to also service OEM / Genuine Brand pumps but MUST use CAT Mechanical Seal p/n: 4204328 in place of JMP Mechanical Seal MCSSET0008. MCSSET0008 is only for JPR-CT3054 JMP Marine Brand Pump.

Why was Mechanical Seal Changed?
To provide a longer life mechanical seal for longer lasting product and performance
Major Service Kit (All Internal Parts)
*Sold Separately

JSK0072 (For JPR-S7632 Pump)

Minor Service Kit
*Sold Separately

JSM0002 (For JPR-S7632 Pump)

Features:

  • 100% Plug & Play Replacement
  • Universal Type
  • Heavy Duty Marine Grade Casting
  • Marine Grade Shaft (3X Series Non-Magnetic)
  • O-Ring End Cover Packing
  • Spline Drive Shaft (Not Key Drive)
  • High Performance Impeller
  • High Volume Flow Capacity
  • Fast Flow Velocity
  • CAT Impeller 7E0321 = Use JMP 7600-01
  • JMP Impeller 7608-01 = Also used to Replace Sherwood 27000

Please note that shipping cost calculations are based on packaged weight which can be higher than the actual product weight.

SHIPPING COST SAVINGS – BULK ORDERS:

Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or by phone at (022) 23827442 for bulk order shipping quotes. Bulk orders are usually based on an order of 3 units or more.

SHIPPING COST SAVINGS – BULK ORDERS:

Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or phone (022) 23827442 for bulk orders. Bulk orders usually based on 3 units or more.

1 Year Manufactures Warranty
