#JSK0092 JMP Marine Volvo Penta Engine Cooling Seawater Pump Major Service Kit (Services JPR-VP0010DB, Volvo Penta 3593655, 3580945, Johnson 10-24752-01, 10-24465-01, Jabsco 29450-1231)

13,298.59

SKU: JSK0092 JMP

Condition: New

Availability: Usually ships within 1-10 business days from Mumbai, MH, India depending on stock availability

Shipping Within India (For all products):
1. Free shipping on order of ₹10,000/- or more
2. ₹499/- flat rate for orders between ₹5,000/- to ₹9,999/-
3. ₹299/- flat rate for orders below ₹5,000/-

GST: As applicable it will be automatically added during checkout

Weight: 3.00 LBS

SKU: JSK0092 JMP Category:
Description

Description

#JSK0092 JMP Marine Major Service Kit
Major Service Kit for JMP Marine Volvo Penta Engine Cooling Raw Water / Seawater Pump JPR-VP0010DB, Volvo Penta Pump 3593655, 3580945, Johnson 10-24752-01, 10-24465-01, Jabsco 29450-1231

PLEASE NOTE:

Major Kit #JSK0092 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.

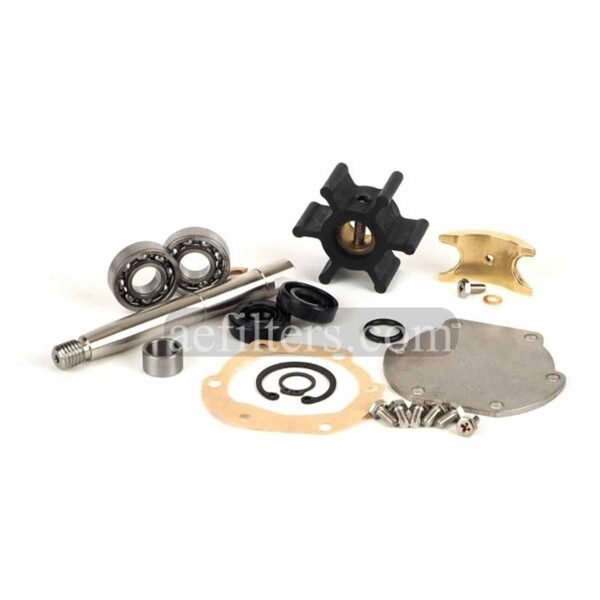

Major Service Kit #JSK0092 Includes (All Internal Parts):

7051-01 (FLEXIBLE IMPELLER) – QTY:1
BOL0144 (HEX SCREW, END COVER) – QTY:6
CAMSET0035 (CAM SET) – QTY:1
COV0048 (END COVER) – QTY:1
GAK0052 (END COVER GASKET) – QTY:1
RET0048 (RETAINER) – QTY:2
BER0048 (BEARING) – QTY:2
ORG0053 (O-RING, SLINGER) -QTY:1
ORG0056 (O-RING, MOUNTING) – QTY:1
SHA0108 (SHAFT) – QTY:1
SNP0024 (LARGE SNAP-RING) – QTY:1
SNP0027 (SMALL SNAP-RING) – QTY:1
SPC0027 (SPACER SLEEVE) – QTY:1
SPC0029 (SPACER WASHER) – QTY:1

JSK0091 Approx Total Lbs: 1.30 LBS / 0.60 kg

Services JMP Marine Volvo Penta Replacement Engine Cooling Pump & OEM / Genuine . . .

JMP Marine Engine Cooling Pump: #JPR-VP0010DB
#JPR-VP0010DB Replaces Volvo Penta Pump P/N: 3593655, 3580945
#JPR-VP0010DB Replaces Johnson Pump P/N: 10-24752-01, 10-24465-01
#JPR-VP0010DB Replaces Jabsco Pump p/n: 29450-1231
#JPR-VP0010DB good for D1/D2 Series Engine Models: D1-13A/B/F, D2-40A/B/F
MD2030A, MD2030B, MD2030-C, MD2030-D, MD2040A, MD2040B, MD2040-C, MD2040-D

Please note that shipping cost calculations are based on packaged weight which can be higher than the actual product weight.

SHIPPING COST SAVINGS – BULK ORDERS:

Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or by phone at (022) 23827442 for bulk order shipping quotes. Bulk orders are usually based on an order of 3 units or more.

SHIPPING COST SAVINGS – BULK ORDERS:

Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or phone (022) 23827442 for bulk orders. Bulk orders usually based on 3 units or more.

1 Year Manufactures Warranty. *Warranty is void if not installed by licensed technician and/or approved repair facility.
